AC Condenser Switch + Wiring (Pics)

Postby 4.0R51 » Sat Jul 17, 2021 10:46 pm

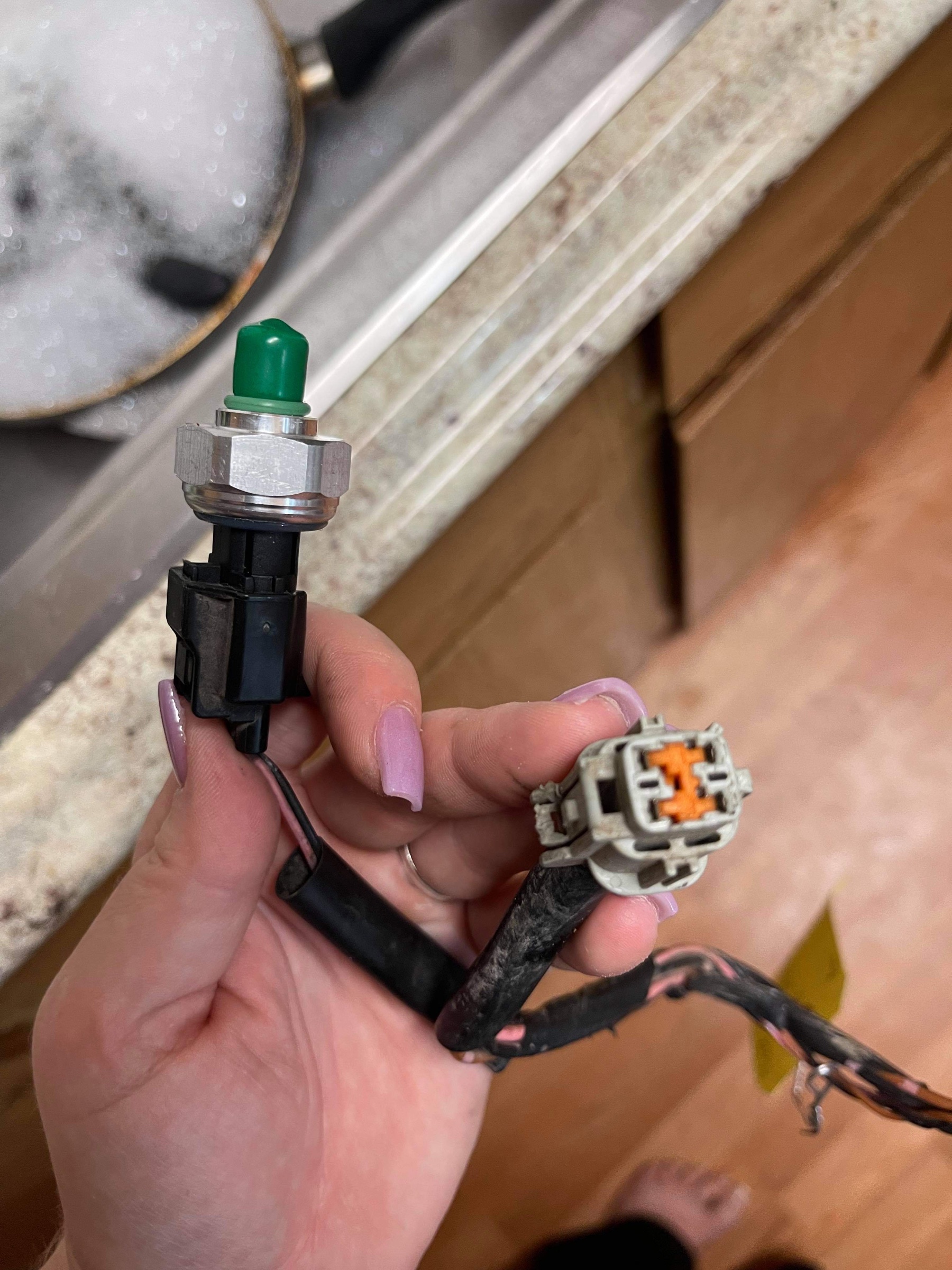

My mechanic said I needed a new climate control switch that goes into the AC Condenser, so I ordered it, (with the green tip)

And found the wiring for it, i can have someone wire it into the ripped existing harness but there is another connector that I don’t know where it goes

Any ideas?

This is for an 05 R51 with the 4.0
Attachments
Last edited by 4.0R51 on Sat Jul 17, 2021 10:48 pm, edited 1 time in total.


User avatar
smj999smj
Site Admin
Posts: 5950
Joined: Sun Jan 22, 2012 11:13 pm
Location: Prospect, VA

Re: AC Condenser Switch + Wiring (Pics)

Postby smj999smj » Sun Jul 18, 2021 12:05 am

It's for the electric fan.

4.0R51
Posts: 2
Joined: Fri Jul 02, 2021 12:54 am

Re: AC Condenser Switch + Wiring (Pics)

Postby 4.0R51 » Sun Jul 18, 2021 7:46 am

smj999smj wrote:
Sun Jul 18, 2021 12:05 am
It's for the electric fan.
Thank you!
