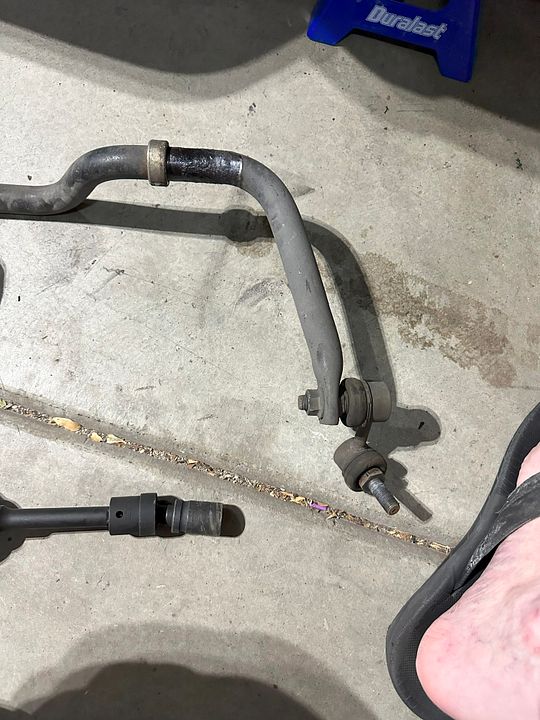

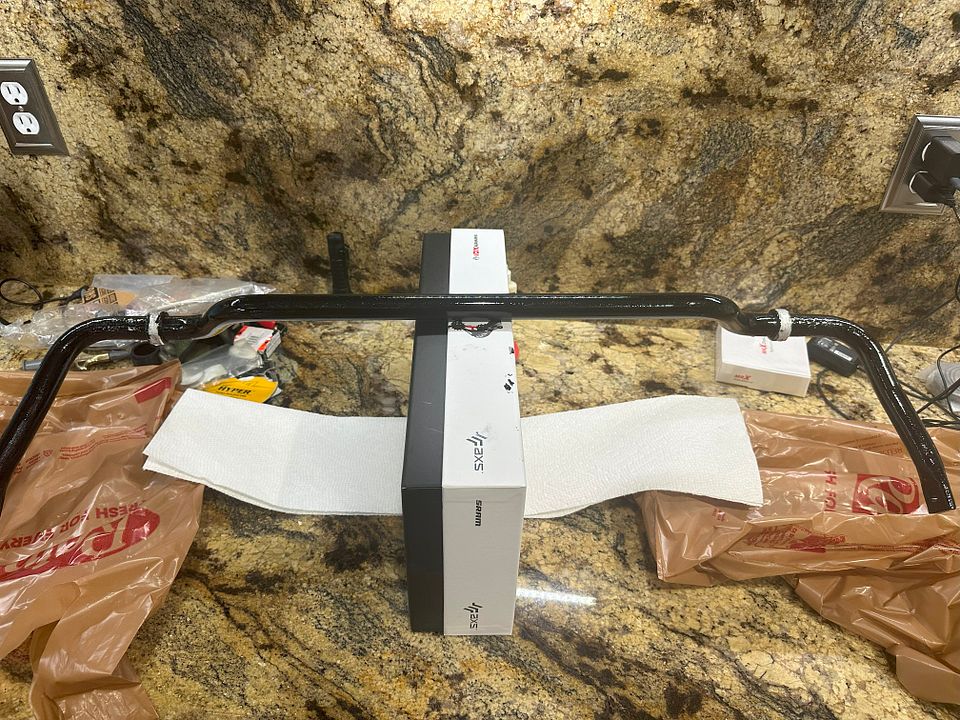

After some wire brushing and sanding, I filled in the pits with POR-15's patch filler, which is kind of like a thicker version of POR-15. Then painted the entire bar with POR-15. I painted the brackets as well, but the surface is so bad they are always going to be ugly.

I waited a couple days, then once it was cured and solid I lightly sanded it to get it as smooth as possible with POR-15. Put in some fresh OEM bushings and new Moog end links at both ends, and it once again all feels new!
Speaking of which, I have poly bushings in the front from Siberian Bushings. Slightly stiffer than Prothane or Energy, and they come unsplit so you can cut them where you prefer. For the rear, a company called Suspension Dudes finally made a poly sway bar bushing that fits our rear bars. But it is crazy stiff. It's definitely the right size, but I couldn't get enough upwards force on the bracket to install them myself with the truck down on its wheels. Will have to try them with the truck up on a rack.
